Machining the MLA-8 Indicator/Saddle Stop

I recently decided it was high time I quit cursing my micrometer carriage stop, and actually make myself a bracket for mounting a dial indicator. I had a dial indicator on my previous SB lathe, and it was a very useful accessory. While a positive stop for the carriage is sometimes preferable, I?ve found that for most of my work, the dial indicator is much more useful for easily and precisely locating the carriage along the ways.
Such brackets can be readily machined from metal bar stock, but I prefer the Metal Lathe Accessories MLA-8 indicator/saddle stop bracket, for its streamlined design and classic look. It?s a fun little project that can be completed in a couple of evenings. And for those of you out there who don?t like machining cast iron... fine, I say, that leaves more for the rest of us!
If you have never machined an iron casting before, it can be a bit of a challenge to figure out the best machining approach. One has to carefully judge material allowances, and pay close attention to how the UNmachined surfaces relate to those which will be machined. It?s a kind of knack that one slowly develops with experience, and I actually enjoy the challenge. This project, being fairly simple and forgiving, makes an ideal first project for the novice.
The MLA-8 bracket casting has a very generous machining allowance to fit a variety of bedway sizes and configurations. I found that the simplest way to transfer the bracket contour to the casting was to start with a paper template, trimmed to fit the front bedway, and marked with the approximate location of the indicator centerline:
IMAGE(http://img.photobucket.com/albums/v470/haplesspeanut/Main/mla08009.jpg)
The bracket contour can then be traced on the casting, such that the indicator location is centered on the round casting boss. This is just to get us close -- there will be a bit of cut-and-try when the time comes to fit the bracket to the bedway.
To accurately machine the V-way contour, I clamped the bracket in the vise using a 45° angle block. With the bracket clamped lightly in the vise, I placed a 1-2-3 block across the jaws, secured in place under light end mill pressure (padded with a scrap of leather), and offered the angle block up to align the bracket:
IMAGE(http://img.photobucket.com/albums/v470/haplesspeanut/Main/mla08003.jpg)
This setup worked pretty well. After getting it machined as close to the line as I could, I removed the bracket and offered it up the lathe bedway -- close, but not quite there. Back to the mill for a tweaking cut, and that was all it needed. The bracket slid very easily along the front V-way.
The rest of the machining operations are fairly straightforward. I deviated slightly from the plans in moving up one size on the cap screws (1/4 & 5/16 instead of #10 & 1/4), but only because there was ample clearance, and it seemed more ?proportional.?
If you don?t have a slitting-saw for your mill or lathe (as I don?t) the indicator clamp barrel can be slit with a bandsaw. I bolted the bracket to the end of a 1-2-3 block, using the clamp bolt hole. Here?s what that setup looked like:
IMAGE(http://img.photobucket.com/albums/v470/haplesspeanut/Main/mla08004.jpg)
Be careful to block up the saw, or place a piece of scrap in the indicator hole, so that the saw blade doesn?t mark the opposite side of the indicator hole when it cuts through.
The clamp shoe is a simple part to make. You may have to machine an eighth of an inch or so off of one end, to clear the carriage rack, as I did. The plans call for the 1/8? dowel pin to be pressed into the clamp show, but I pressed mine into the bracket. No particular reason -- just made more sense to me.

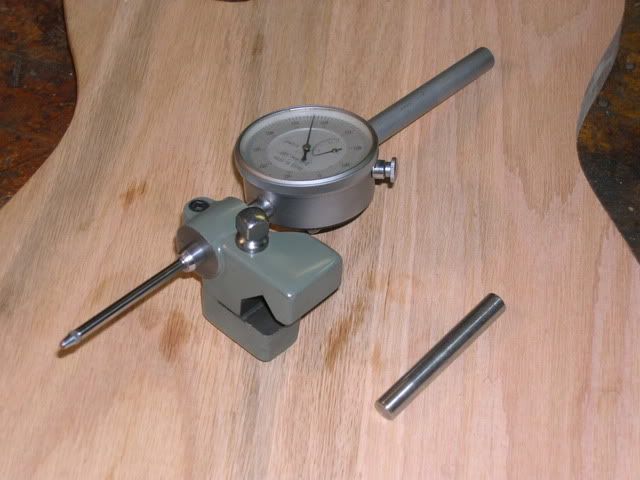

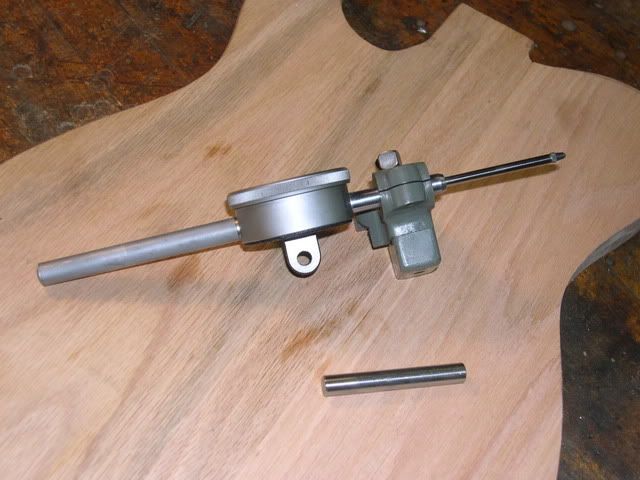

I painted my finished bracket to match the lathe:
IMAGE(http://img.photobucket.com/albums/v470/haplesspeanut/Main/mla08008.jpg)
My next challenge: save up for a 2? travel indicator!
Paula

As always Paula, nice work. This is one of those projects that never seems to find it's way off my to-do list and replace the magnet/indicator set up that I use now. Seeing the whole thing done in one post might be enough motivation to make me get it done, thanks.
I do have a question about your face mill though. What diameter is it and have you used it on any material other than cast iron? I'm just curious how an indexable face mill works on a smaller sized mill.

Nice looking job Paula.
I assume the clamp kit is a (2) piece kit; body and foot?
Is there a stop on the dial ind. mt'g. hole or some means of keeping the operator from "crushing" the indicator?-Jerald

Ok Paula, can your next post be a collection of all your screw ups? I'm getting tired of having to praise your work. It's just not in my nature.
I'm so glad you posted your journey on this. I've been seriously eyeing some of MLAs kits but they're geared towards a 9" lathe and I have a heavy 10. I figured some of the stuff would work, but wasn't completely sure.
This in fact was one of the projects I wanted to make and I was assuming that the vee would have been rough cast in. To that end, could you measure from the top/point of the vee to indicator hole's center?
Did you debate machining the bosses where the indicator mounts? Nothing mates with those surfaces, so I'd have to think about it myself. Looks nicer that way, but another surface that wants to rust on you.
Ken
PS did you ever get the faceplate? I'm dieing to see what that looks like from the back -- I'm hoping it could be machine to mate with a D1-4 spindle without making an adapter.

Hmmm...I suddenly feel motivated to start taking pics of my MLA steady rest project.

Thanks Paula, I'm always on the lookout for things to add to the tooling wish list.

Very cool. Hadn't seen that site before either... wow.
Why wouldn't you get some stock of choice and make one of those? That's what I was planning on doing. Am I missing something?
bb

Doggone it Paula! Just when I was smugly congratulating myself on the indicator mount I made from bar stock, you come along and show how it SHOULD be done! :-)
Beautiful work as usual - thanks for posting. I really like the "original" look.
Blob

Thanks Paual. I wanted to make sure there wasn't a material advantage to the kit as opposed to what other members are using.... Al and such.
bb

Hi There,
Nice job Paula! Those MLA-8 indicator bases are real handy. I got one of those indicator
carriage stops and machined it a few years back. I didn't bother to paint mine.
The nice thing about the MLA-8 is that it is beefy enough to machine the inverted "Vee"
to fit other size lathes. I machined mine to fit my 11 inch Logan.
I think it is best to machine the two side bosses to increase the effective depth of travel
of the indicator and to improve the appearance of it.
The Dial Indicator is nice to work with too. I love (after I have set it), to watch the needle
sweep around and then snaping the clutch out when it reaches within 1 or 2 thousandth
of the "zero" mark. Then just move the carriage by hand the last Thou or so. Very Cool!
Also, you can replace the Dial Indicator with a dowel pin and you can use it as a plain
carriage stop.
Good Luck!
-Blue Chips-
Webb

Not as pretty as your's Paula, but I made it out of an extra stop I had laying around a few years ago.

Attached


IMAGE(http://factorydaily.com/fdattachs/fdattachs3/112114100166388.jpg)

Since you mentioned I;
I was going to wait a few days, so as not to cut into you post.
I have a complete fabrication story written up. I can post it if you want. It is very detailse and will run on and on.
Jim B.

Ok this will take several "replies".
there are 19 pictures and we are to 4 Pictures per reply so give me a chance to do 5 replies before breaking in. It will take me a few to load up my Flckr site (which is down at this instant) but I will be back.
Jim B

Threads like this are beyond informative for us newbs... appreciate all the work that goes into posting them!
bb

An indicator for carriage travel is possibly the single
handiest item for a lathe like that. I could not imagine
running a machine (without a DRO) that did not have one
of those.
If you get tired of moving the clamp around on the ways
using an allen wrench I could make the following suggestion
for a modification: Take out the allen head screw that
secures the base to the bed, and replace with a home
made screw that is cross drilled at the top for a tiny
tommy bar.
In my case I used two steel balls pressed onto the end
of the bar to secure it in place, and allow it to slide
back and forth to clear the headstock when the clamp
is at full left travel.
Photo details on request...
Jim

Jim,
Please do tell...with pictures, etc!
Dave

Re: Jim's Tommy bar improvement...
I've often wondered why SB used a SHCS instead of the ominpresent square head screw.
I had been thinking of using one. If nothing else I like to cut down on the variety of tools I need. The more things work with a single tool the better. The sq head / wrench combo has some of the benefits of the tommy bar too in that you can just leave the wrench on there. Just food for thought...
Ken

As promised, photos of my carriage travel indicator. It's
made of aluminum bar stock, 1/2 X 3/4 inch, the screw
is CRS and the tommy bar has ball bearings that I torch
annealed, which accounts for their somewhat scaly appearance.
IMAGE(http://www.metalworking.com/dropbox/dial_1.jpg)
IMAGE(http://www.metalworking.com/dropbox/dial_2.jpg)
The funny cut-out on the side is to clear the screw that
holds the brass way wiper clamp on the saddle....
The component parts look like this:
IMAGE(http://www.metalworking.com/dropbox/dial_3.jpg)
The lower clamp keys into the upper clamp, into a notched
milled into the underside. This keeps them from spinning
with respect to each other when it is tightened down.
The indicator is an old one I resurrected which oddly
enough says "Springfield Armory" on the dial - one inch
travel.
Jim

I almost forgot...
I, for one, would appreciate whatever documentation you care to post, as I'm considering the steady-rest kit as well. Here's a picture of one that was built by (I think) forum-member Jim B.:
IMAGE(http://img.photobucket.com/albums/v470/haplesspeanut/Main/MLA09D.jpg)
Nice work!
Paula

I will post my pictures and process when I am done Paula. I will admit to making some design changes along the way from what the plans list. I am only lacking drilling and tapping the clamping bolts, turning the 1/4" all-thread for the adjustments, turning some knobs for the ends of the all-thread, and mounting the casting to my adapter plate for the 13" bed ways. So far the only screw-up has been putting the wrong angle on the side cuts on the first finger, and I had enough Brass left to make a replacement so no biggy.
Can't wait to make a contribution here as the site has been most helpful, but it will be a few weeks as I have a wedding to go to and then a bit of well-earned Wife and Daughter time soaking up the next two weekends.

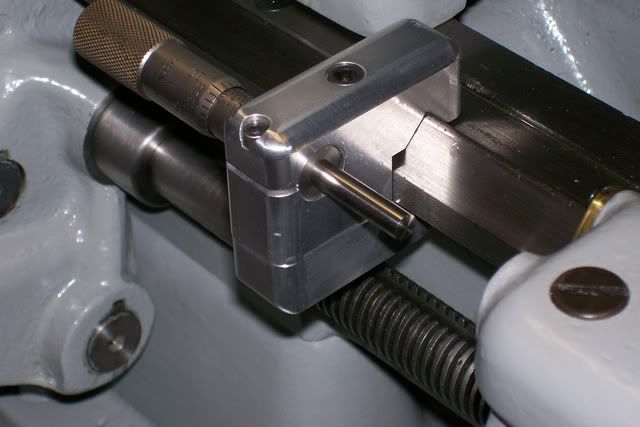

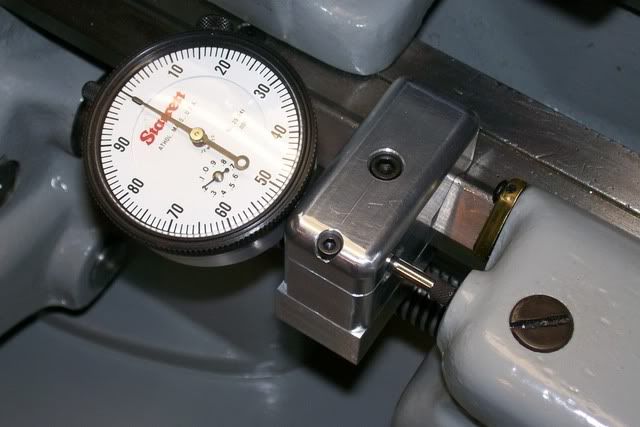

Here are two different stops I made for my 9A. One has an old Starrett micrometer head and the other a 1" travel dial indicator. I haven't radius'd the corners on the clamp piece for the dial ind. holder yet. Both are aluminum bar stock. The holder with the dial ind. is wider (1") so the stem can't bottom out and damage the mechanism.
IMAGE(http://i169.photobucket.com/albums/u231/dhalderman/100_0332.jpg)
IMAGE(http://i169.photobucket.com/albums/u231/dhalderman/100_0334.jpg)

Jim: Can you show us a photo of your Springfield Armory dial. I would guess it it would be worth more as a collector's item that a tool. Gary P. Hansen

If you get tired of moving the clamp around on the ways
using an allen wrench ....

You might also be able to adapt the quick release lever from a bicycle wheel.
I picked up a 2" starrett indicator at an estate sale. Now I need to make one of these brackets for it.
Steve

See the top photo I posted above Gary, the name stamped
on the dial is visible there.
Jim

I have a simple question regarding the design of the original post. why are there 3 sliding surfaces on the bracket? there should only be 2 (resting on the v-way) I can;t understand for the life of me the need for vertical contact? is there really a good reason or is it simply adding unnecessary machining time.

Attached


IMAGE(http://factorydaily.com/fdattachs/fdattachs3/112114100266389.jpg)

The way clamp needs to rest on something, so the bottom of the 'body' has to come down that far.... why not make it useful? That's my guess.
bb

The way clamp needs to rest on something, so the bottom of the 'body' has to come down that far.... why not make it useful? That's my guess.
bb

That surface had better be dead nuts on, or it could make the top not seat on the v-ways. The v-ways are such a good reference surface that I think it would be better off without contact on the side.
Of course on my Atlas with flat ways, that edge MUST be the reference for the clamp.
Steve

It doesn't seem like a stop or mic holder would have to be that precise, but that's probably just me being thick again.
bb

Actually that's true, the MLA design does indeed have an "overdefined"
geometry. If the dimensions are not exactly right, one of those surfaces
will not be in contact with the bed ways. In the aluminum one pictured
above, the upper part only contacts the ways on V portion.
Jim

I think what Jim Rozen really means when he uses the term "overdefined geometry" is the engineering phrase "tolerance intolerant." In other words to make it work he wants some slop in it, some "elbow room." Andy L.

My apologies for promoting a seriously flawed design. Next time I'll save myself the bother.

Hello Paula, - Please forgive me in advance if I'm out of line but I don't think the MLA-8 indicator - saddle stop has a "seriously flawed design". I think it's a good design and a elegant look. I made one almost 18 years ago, or so, and it works fine. It was a little difficult to machine for a beginner, witch I was at the time, but I was so proud of it I would show it off to anybody that came over to my shop. I made a square, skirted bolt like the stock saddle stop bolt so I could use the little SB .375 tool post wrench. I will try to post some photos when I get a chance.

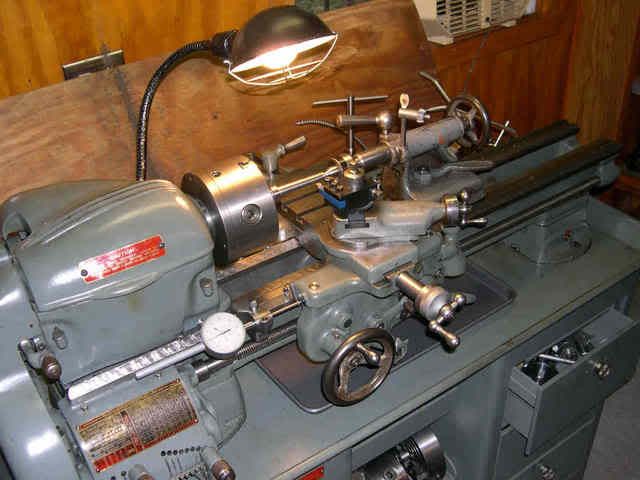

I hope I'm not opening a can of worms here but I really like the Metal Lathe Accessories kits. I feel they ad allot to the hobby and home shop machining. Just my 2 cents, thank you.
Tex
IMAGE(http://i260.photobucket.com/albums/ii1/Tex-VA/ML8-Kit.jpg)

Ah - I've trod a toe.
I'm sorry.
I was suggesting that a novice might have trouble getting the
fitup right, on that issue - the spot where the front flat and the
top V have to be just so to give a nice clamp-up.
Not that the MLA design is inherently flawed. I think they make
some very nice designed parts.
As for the square head bolt, I think that's one of the nicer SB
touches. One of my first custom ground HSS tools was to replicate
that odd-sized groove with two different angles, and the radius at
the bottom.
Jim

Just to clear things up a bit, my "flawed design" comment above was intended sarcastically -- I think the MLA-8 is a great lathe accessory, and it's design is superior. MI_PLY's uninformed critique (and the subsequent piling on by others), coming at the tail end of what I thought was a fine review of a worthy product, just hit me at a bad time, and my reaction was disproportionately harsh.
As I attempted to explain in an earlier post (now deleted, and apparently not very effective anyway), what makes this indicator holder such a pleasure to use is the combination of the extra-wide upper (sliding) portion of the bracket, the added mass of the upper bracket (which counterbalances the weight of the indicator), and the well-defined contact surfaces, especially the one which rides along the front of the bedway. These factors combine to make the tool slide very easily along the bedway when the clamp is loosened -- it doesn't immediately sag down and bind up, like lesser units with underdefined sliding surfaces.
I think some of you may have confused the bracket with a precision machine slide. There is no need for great accuracy here -- you just want the three mating surfaces in reasonably close contact with the bedway, to provide a guiding influence as the bracket is pushed along the bed. Doesn't need to be "dead nuts on". I actually found it quite easy to machine, working first from a scribed line, one trial fit, and a final eyeball pass.
Paula

The width is a nice feature. Mine is a bit bindy because
it's narrow.
But mark the surfaces on the stop with blue sharpie,
all three - front and rear Vs, and the front vertical
one - and mount it to the bed. Slack the clamp and
slide it along a bit and see if all three blue marks
rub off.
Some hand scraping would ensure it if they don't.
Jim

Paula, I wish you would consider reposting your article and photos of your indicator/saddle stop project. As a novice, I enjoyed all your articles and appreciate the fine photos and descriptions. You not only do excellent work, you also describe your work in a way that makes it easy to understand. Your photos always show the subject accurately. I'm sure it takes a lot of time and effort to produce these articles, and I would like to say "thank you" for what you have done to help the novice (me!).

Hi Paula,
I hope I won't offend you or others here, that is not my intent, trust me.
I didn't get the intention you were being abused. Perhaps I'm just used to that kind of comment as a male and an engineer (a deadly combo ) However, the main point seemed valid -- the front edge of the ways is by no means precision machined. if you were mass producing those brackets and trying to make contact on those 3 edges, you'd be in trouble fast as you find too many variations amoung specific lathes.
But you're not mass producing them. You've custom fit it. So no harm there. As you point out there was a method to your madness.
I second the plea to return your review. The readers can decide what machining they want to do.
And in any case, there is NOTHING flawed in the design of the MLA-8 here. If you want the clearance on the clamp and bracket, machine it in. If you don't, don't.
Enough said I hope.
Ken

Having the photos there in the thread is the right thing. I think, based on the brou-haa-ha
going on the main board here, that the SB forum is where the home shop folks condense
down into. And that novices especially look to this area to get ideas and inspiration.
With your photos there they can see the "rigth way" to do things, along with hacks
like mine. But without the examples they cannot learn and get the courage to
try things on their own. I like to put my hacks up because it shows anyone can do this
stuff if they try, I can, so can they.
Nice to see them back.
Jim

"Having the photos there in the thread is the right thing [snip]Nice to see them back."
I'll second that! I could not make heads or tails of this thread when I looked at it yesterday...now it makes good sense and will be of great interest to others like me who are early in the "learning mode..."

paula thank you very much for putting the review back in, great work.

When I restored the review, I had to leave some of the pictures out, due to the unfathomable four-images-per-post (including smilies!) limit. (The original review spanned three posts.) However, forum-member Steve Wells has added the review to the Projects section of his website, where you can see the full text and pictures:
http://www.wswells.com/projects/paul...Indicator.html
(Thanks, Steve!)
Sorry to have caused such a rukus over this. I've been very on-edge lately over my job situation -- as in, I may soon be out of one. We shipped our last big job just after the first of the year, and there is nothing coming in behind it. Sales has a few things in the works, but no orders forthcoming as of now. One customer cancelled a $500,000 contract in December, and the layoffs have already started. So far, three design engineers have been let go (one of them being the owner's son, who was "co-opping" here), along with the parts manager and one assembler in the shop. That leaves me and the controls guy as the lone survivors in the engineering department. Sitting around, trying to look busy, and waiting for the axe to fall makes for a long day. I've got feelers out for some freelance work to tide me over, but I'm not really looking for another full-time position just yet. I'd like to keep working here, if things pick up.
Anyway, sorry if I allowed personal problems cloud my judgement in this thread.
Paula

sorry to hear about the misfortunes of your work. i will keep you and your employer in my thougths.

Paula: I will keep your work situation in my paryers. Gary P. Hansen

Hi to All,
It was only after reading Paula's post about "links", that I had ever heard of "Metal Lathe".
It sounds Fabulous! I have built steam engines from castings from Stuart Models in England, they are high quality - but very time consuming.
There is no satisfaction like whipping up a small project that actually gives you something back...a new attachment...added versatility...etc.
I am planning to do the Cross Slide casting (for eventual Milling Attachment), and I will do the Dial holder as well. That large steady rest looks good too!
Castings just look so much more original!
My concern is; this Metal Lathe chap (whom I have not spoken to yet), sounds like a sort of "One man business". What will we do when his products are no longer available? The casting business is not easy unless you are highly experienced. At times I feel we are the last of the last.

Not to hijak the thread, but...... I met Andy (MLA) at cabin fever and he had some of the castings for his kits on display. I was quite impressed with his die filing machine. I came home and did a little looking around and found Frank Ford's documentation of his build
http://www.frets.com/FRETSPages/Mach...iefiler01.html Just what I need, another project that I don't really have the time for. My 15yo son liked it too so it will be a joint effort for us that we are both looking forward to. MLA has some nice, well thought out products, that are quite worth the time spent on them.

That leaves me and the controls guy as the lone survivors in the engineering department. Sitting around, trying to look busy,
Paula

Paula,
Not a fun or productive way to spend a day is it?
I remember the thread when you posted about getting this job, and IIRC you sounded pretty excited. I hope this works out that you can stay. Although times are tough, you will prevail. Prayers and good wishes are with you
Jim

Thanks to all of you for your kind thoughts. I made it through Friday without getting "the notice" (it seems that they notify you on Friday afternoon), so I guess I still have someplace to go on Monday.


I have built steam engines from castings from Stuart Models in England, they are high quality... There is no satisfaction like whipping up a small project that actually gives you something back...a new attachment...added versatility...etc.

I have to say that I agree wholeheartedly. I have a casting kit for a Stuart 10V engine that is patiently waiting it's turn to be built (along with a couple of other casting kits -- a 3/10 scale John Deere hit/miss engine, and 1/2 scale Briggs & Stratton model FH).

Castings just look so much more original!

Again, I agree. I think that castings lend a certain authenticity to a machined project.

My concern is: this Metal Lathe chap (whom I have not spoken to yet), sounds like a sort of "One man business". What will we do when his products are no longer available?

All the more reason to get the castings now, if you are eventually planning to make the items. That's what I did with the Briggs-Stratton kit, even though I wasn't planning to build it right away. Turns out that the guy selling the kits fell ill, unfortunately, and only managed to sell a few of them, so I'm very glad that I purchased one when I did.
Paula

Paula;
If you don't mind ,could you tell me where you found JD castings .I would love to build one of those ,and I find I have the time Now.

Not sure if they are still available, but check this post for the particulars. The John Deere Model E, with it's enclosed crankcase, was something of a milestone design.
My experience is that these kits are almost always of limited availability, either by intent (to increase their collector value), or by the supplier's own patience in dealing with commercial foundries. Let me know if I can be of any further help.
Paula

Today a good friend of mine, Charles Keeney, stopped by to have me look at a tool he was having a problem with. Charles purchased my South Bend 9" Lathe with all of the tooling so I ask him to bring over the MLA-8 Indicator/Saddle Stop that I made for the lathe. I wanted to take some photos of the tool while he was here. I wish I could have photographed it on the lathe and it won't fit my Heavy 10 so I shot the pix on a guitar body. I know, that raw wood's getting kind-a oily from using it for photo stand for tools but I think it makes a nicer back ground than my old beat up work bench. Also, the short piece of .375 drill rod is to replace the indicator and using the MLA-8 for a carriage stop. Tex
IMAGE(http://i260.photobucket.com/albums/ii1/Tex-VA/SBCarInd1.jpg)
IMAGE(http://i260.photobucket.com/albums/ii1/Tex-VA/SBCarInd2.jpg)
IMAGE(http://i260.photobucket.com/albums/ii1/Tex-VA/SBCarInd3.jpg)
IMAGE(http://i260.photobucket.com/albums/ii1/Tex-VA/SBCarInd4.jpg)

That's a two inch indicator, right?
The faux SB square-head screw is terrific. They never did polish
those from the factory!
And while we're at it, how come everyones' indicators look so spiffy.
Mine looks like it's been through the laundry.
Jim

Yours gets used :p
Jim

Jim, - Your sort, sort a, right. I didn't use that stop as my every day stop, I used the stock South Bend one. It was used from time to time but it didn't get that nice coat of paint till I sold the lathe. I actually finished things for that lathe that I'd started at least 18 years ago. I sold the lathe to a good friend and promised him I'd get all the little things done. Painting lots of the parts was part of that deal. When I got it all together I felt like I sold him a car that had ugly seat covers protecting the nice original upholstery and now he can take them off and gets to enjoy the nice new seats. I won't let that happen with my new lathe (I hope????). Tex

Add new comment

Images
More information
  • Files must be less than 2 MB.
  • Allowed file types: png gif jpg jpeg.
Documents
More information
  • Files must be less than 2 MB.
  • Allowed file types: zip rar.
